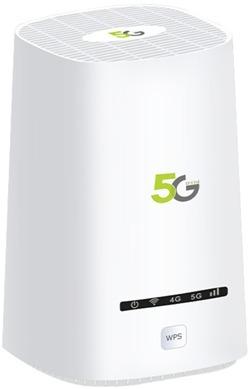

AIMroute AW645G
The AIMroute AW645G is an industrial 5G router designed for reliable high-speed wireless connectivity in enterprise, branch office, IoT, and mission-critical networking applications. It supports 5G NR, TDD-LTE, and FDD-LTE and is 3GPP Release 15 compliant for 5G NSA and SA, ensuring future-ready performance and low latency.
The device provides 4 x LAN ports and 1 x WAN port, supports 2.4 GHz and 5 GHz Wi-Fi, and includes QoS service flow initiated by the CPE, DHCP, and a built-in web server for secure, password-protected, web-based configuration.
Spezifikationen
| Chipset | 5G/LTE: Qualcomm Snapdragon SDX62Wi-Fi: MT7981(dual-core ARM Cortex-A53(1.3GHz)）+MT7976C+MT7531A |
| RF Standard | 5G NR (3GPP Release 15), FDD-LTE,TDD-LTE, HSPA+ |
| Memory | 5G Module: Nand flash 2Gbits + RAM 4Gbits LPDDR4x Router: ROM 128Mbits + RAM 2Gbits |
| Indicators | 1.Power 2.Wi-Fi Switch Status 3.4G Internet 4.5G Internet 5.Signal Bar Indicator |
| Buttons | Reset Key + WPS Button |
| Interfaces | 1.GE LAN Port * 4, GE WAN Port * 1 2.SIM Slot * 1 (3FF) 3.DC Socket 4.USB2.0 for Manufacture |
| LAN/WAN | GE LAN Port * 4, GE WAN Port * 1(Currently DHCP/STATIC mode) |
| Power Supply | AC100V~240V, 50Hz~60HzDC 12V DC±10% 2A |
| Power Consumption | < 24W |
| Dimensions | 117*117*180mm |
| Weight | ~865g |
